| FREAME SET | ||

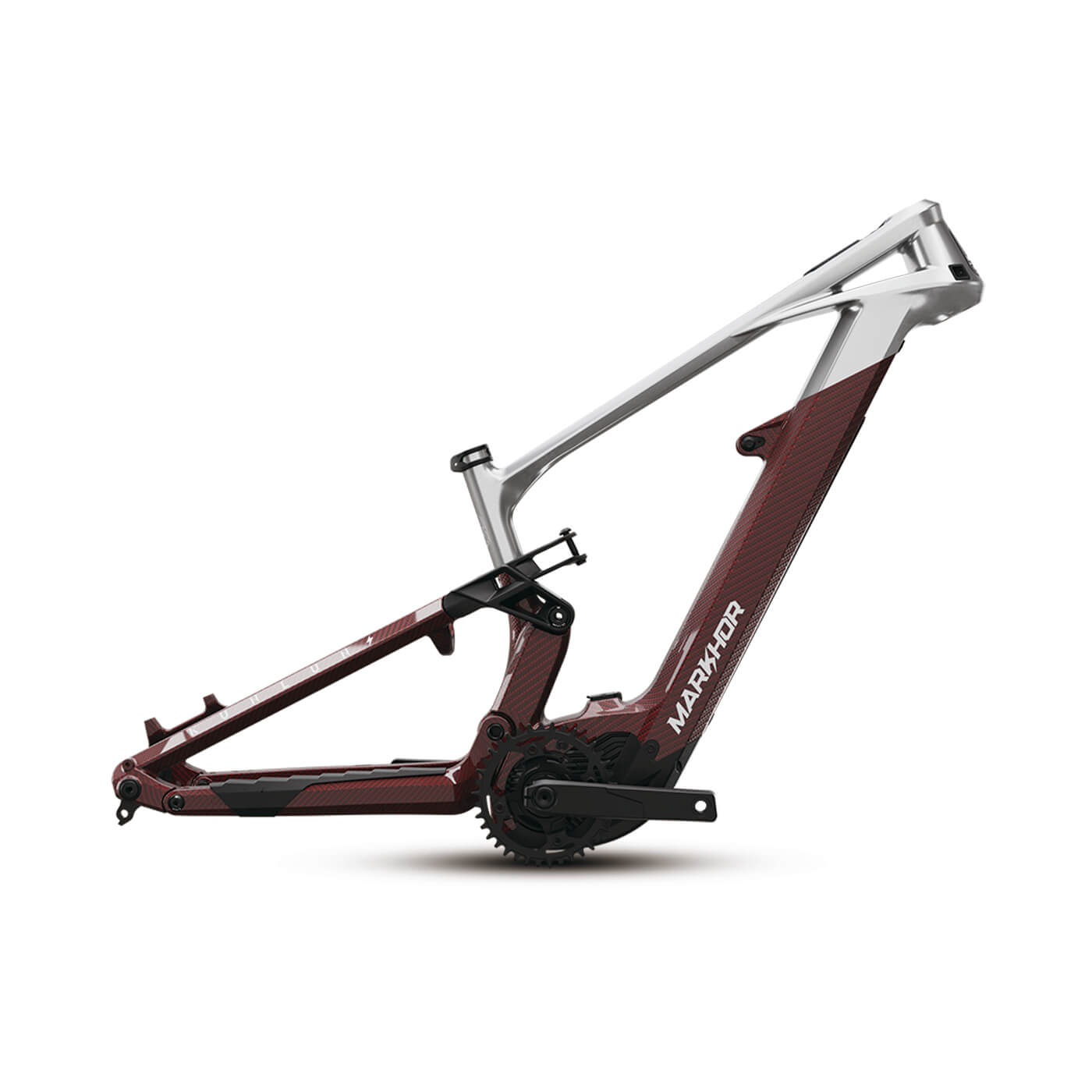

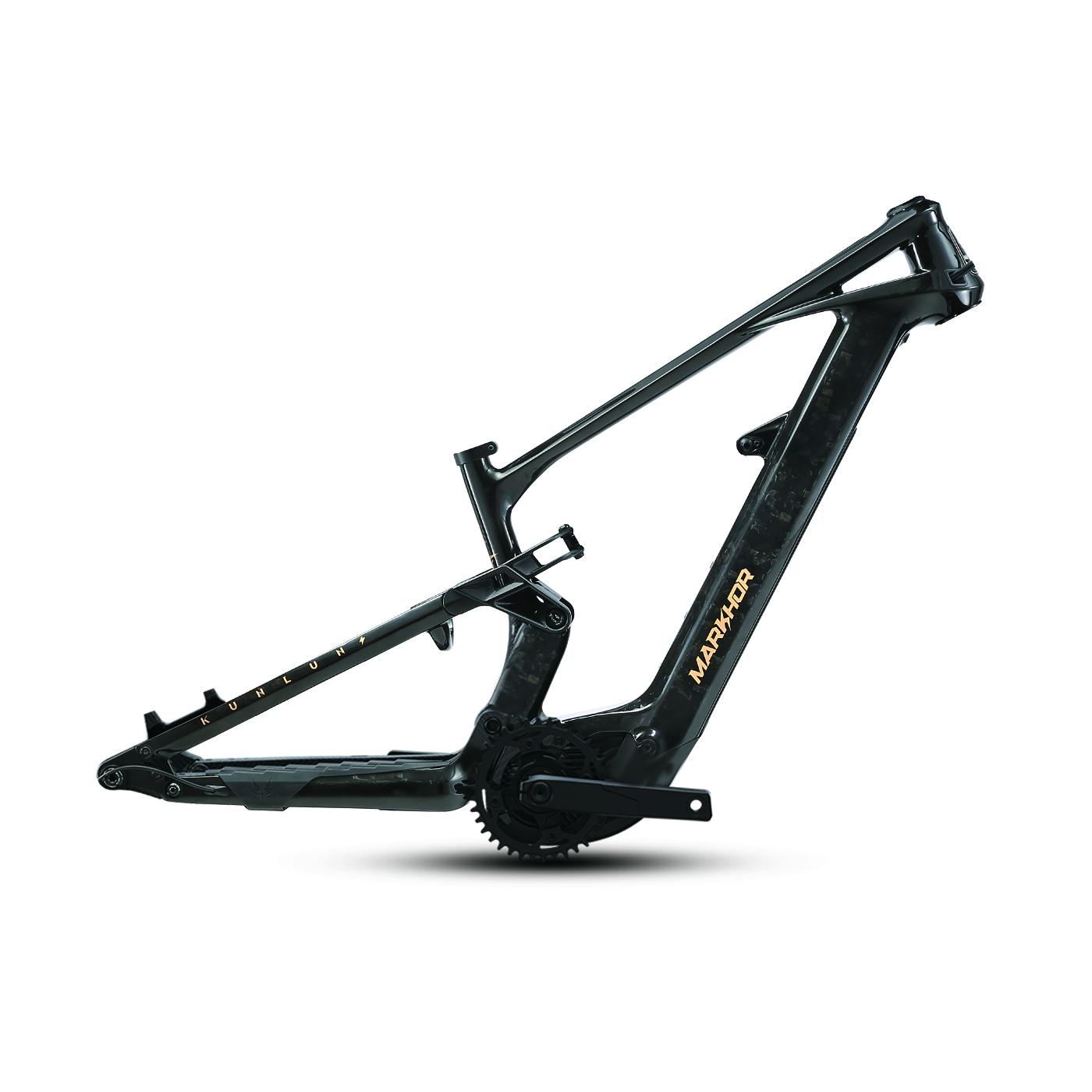

| 1 | FRAME | KUNLUN Full Carbon 29”, Toray T700, Internal routing, Rear travel 170/190 mm, 12x148 mm E-Thru |
| 2 | BEARINGS | Enduro LLB MAX E-bike Pro |
| 3 | MOTOR | MARKHOR M560 Special Power Version（ Manufacturer :BAFANG ） |
| 4 | BATTERY | LG 5800 mAh battery cells / 48V 17.5Ah / 840Wh |
| 5 | CHARGER | 48V3A |
| 6 | HEAD SET | 44/56 |

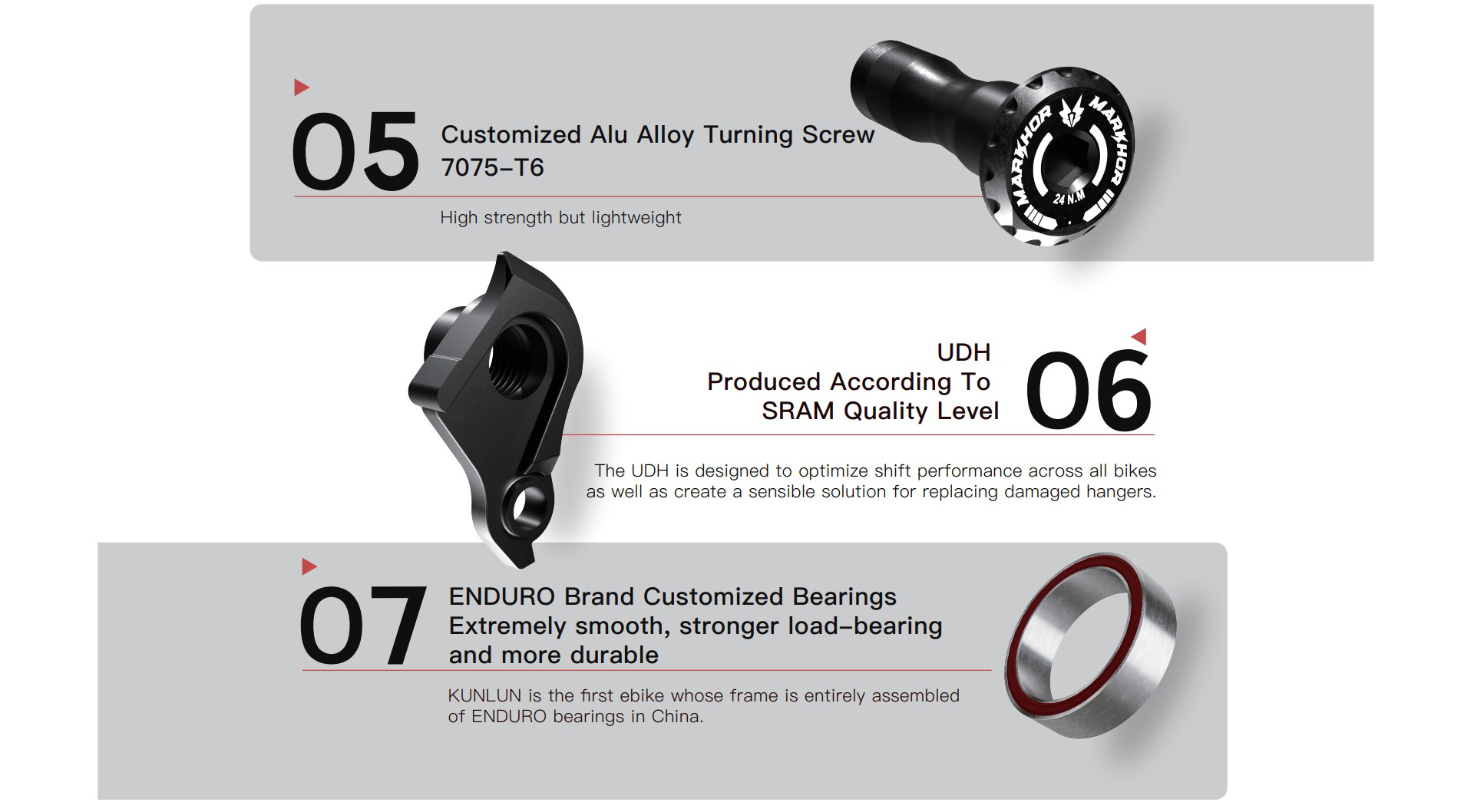

| 7 | OTHER PARTS | seat tube clamp / axle / UDH derailleur hanger |

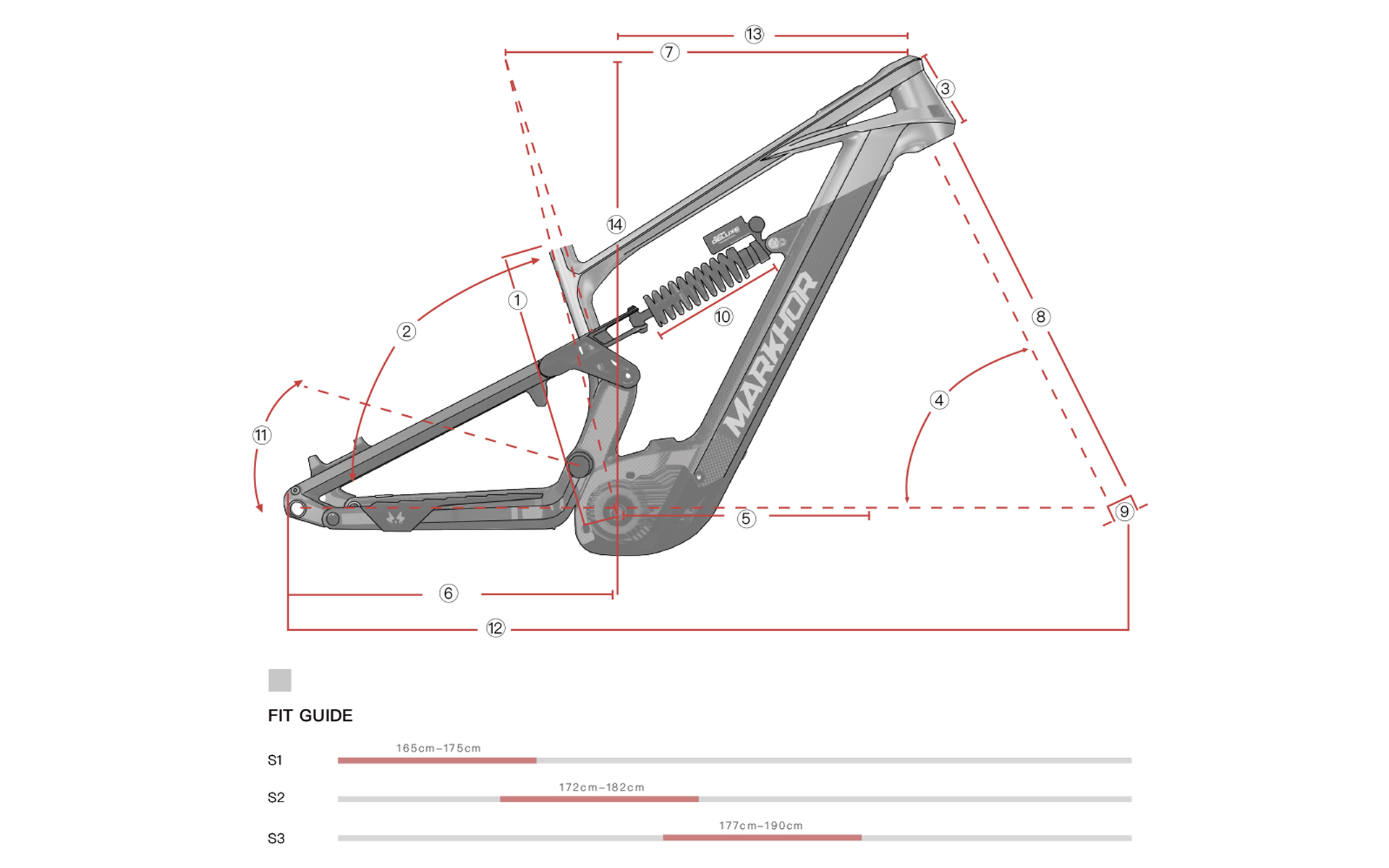

--- Geometry ---
| S | M | L | ||
| 1 | seat tube length | 381mm | 425mm | 460mm |
| 2 | seat tube angle | 75° | 77° | 77° |
| 3 | head tube length | 130mm | 130mm | 130mm |
| 4 | head tube angle | 64° | 64° | 64° |
| 5 | bottom bracket offset | -8mm | -8mm | -8mm |
| 6 | chain stay length (RC) | 454mm | 454mm | 454mm |
| 7 | top tube length (horizontal） | 585mm | 614.8mm | 630.8mm |
| 8 | length specified fork + headset | 585mm | 585mm | 585mm |
| 9 | offset specified fork | 44mm | 44mm | 44mm |
| 10 | length specified shock | 250/230mm | 250/230mm | 250/230mm |
| travel specified shock | 75/65mm | 75/65mm | 75/65mm | |
| 11 | rear wheel travel | 175mm / 199mm | 175mm / 199mm | 175mm / 199mm |
| maximum allowed front fork travel | 170mm/ 200mm | 170mm/ 200mm | 170mm/ 200mm | |
| 12 | wheelbase | 1214mm | 1272.5mm | 1301mm |
| 13 | reach | 411mm | 463.7mm | 479.7mm |
| 14 | stack | 651mm | 651mm | 651mm |
--- Match ---
| 1 | Size | S1 S2 S3 |

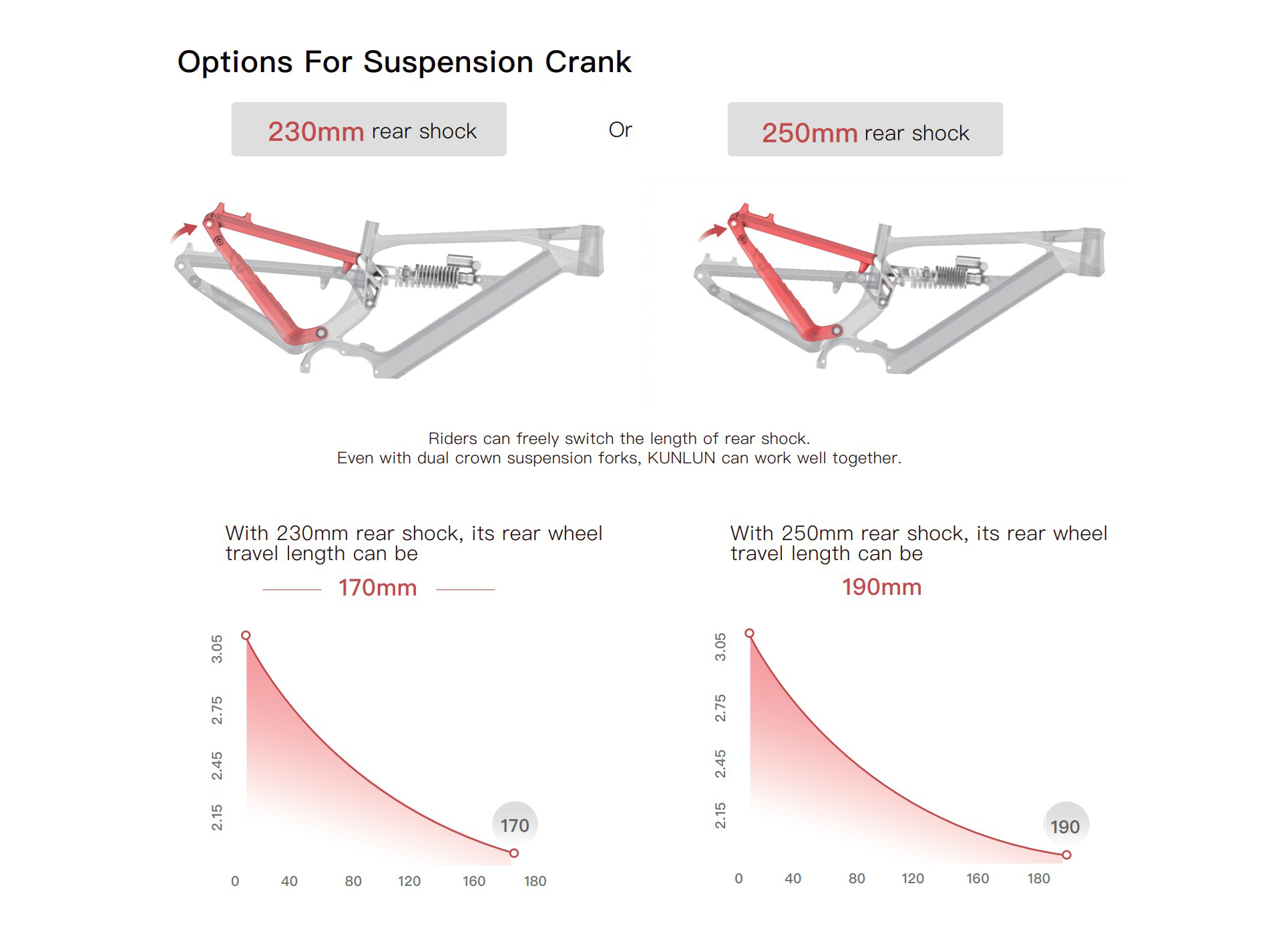

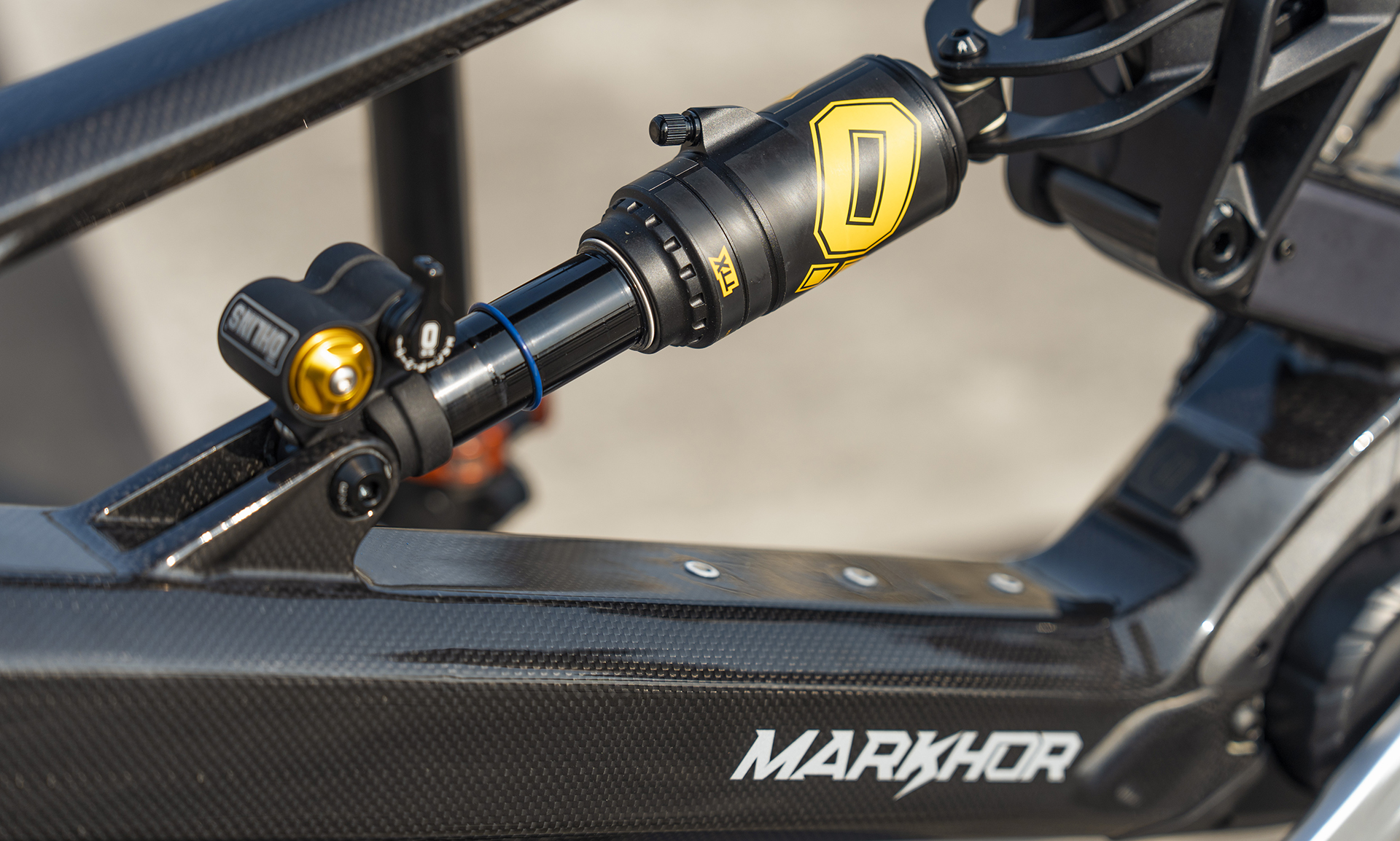

| 2 | Rear shock | 230mm x 65 OR 250mm x 75 |
| 3 | Rear shock liner | 22.2mm x M8 |
| 4 | Headset | ZS44（UP）/ ZS56（DOWN） |
| 5 | Climp | φ36.4mm |
| 6 | Diameter of seat tube | φ31.6mm |
| 7 | Wheel size | F29" x 2.6" / R29" x 2.6" |
| 8 | Original brake disc | 200mm |
| 9 | Rear axle | 148x12 |
| 10 | Speed Measuring Device | Disc Centrifuge |
| 11 | Chainwheel | 38T at biggest |
| 12 | Chain guide | Support |
| 13 | Fender | Support |
| 14 | Brake Wire Length | F≥85cm / R≥165cm |
| 15 | Wire length for dropper seat tube | ≥180cm |
| 16 | Wire length for seat tube | ≥136cm |
